1 × 2.5G + 3 × 1G
One 2.5 Gigabit Ethernet port and three 1 Gigabit Ethernet ports create a small wired cluster for workstations, phones, printers or other appropriate equipment.
Business · GeorgiaTalk with the team MoCA Ethernet Adapter · ASK-MAE340
MoCA Ethernet Adapter
Use a working coax outlet to place one 2.5 Gigabit and three 1 Gigabit Ethernet connections in a room that is far from a compatible Fios router.
Highlights
What stands out.
Existing coax
The adapter carries network traffic over a compatible coax path, which can avoid opening finished walls just to reach a distant office or back room.
MoCA 2.5
MoCA 2.5 provides the coax-network standard and remains backward compatible with MoCA 2.0, 1.1 and 1.0 devices, subject to the limits of the installed coax network.
A closer look

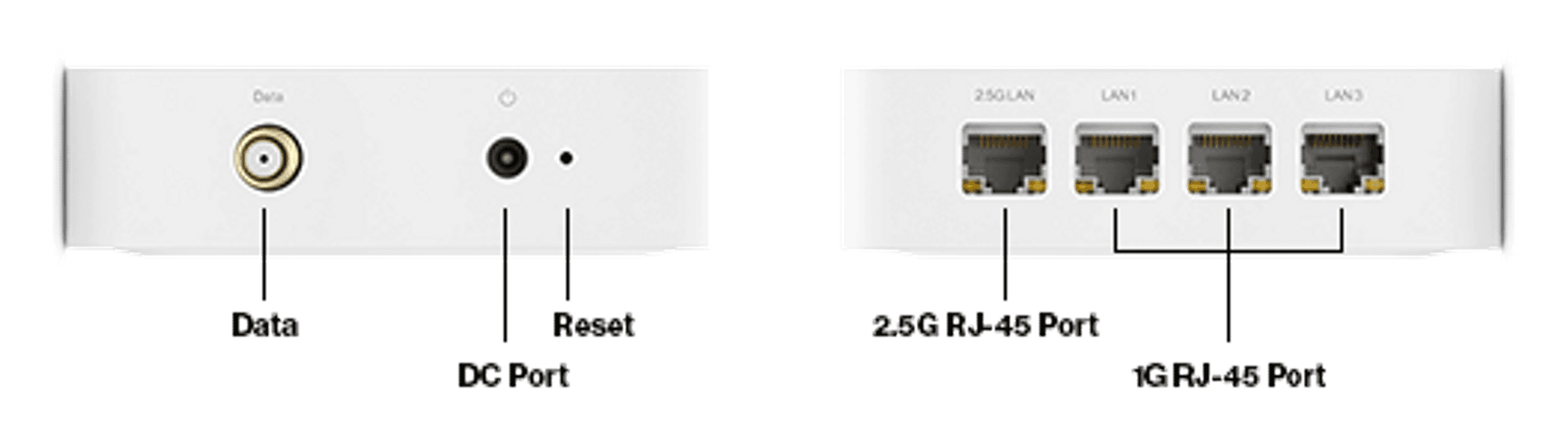

See the coax input, four Ethernet connections and the kind of finished office where existing wiring can avoid a disruptive cable run.

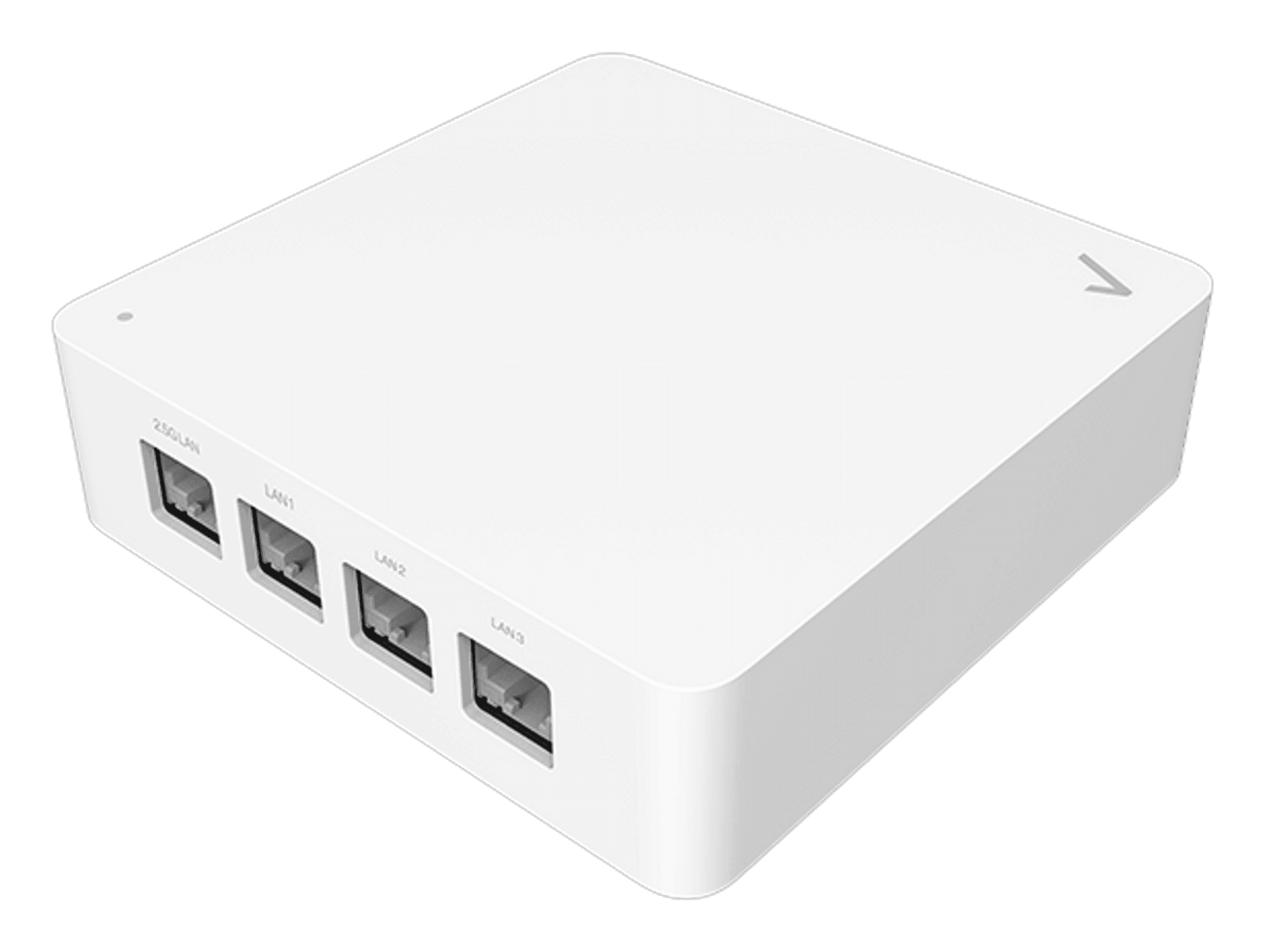

Connect several fixed devices
01 / 041 × 2.5G + 3 × 1G
One 2.5 Gigabit Ethernet port and three 1 Gigabit Ethernet ports create a small wired cluster for workstations, phones, printers or other appropriate equipment.

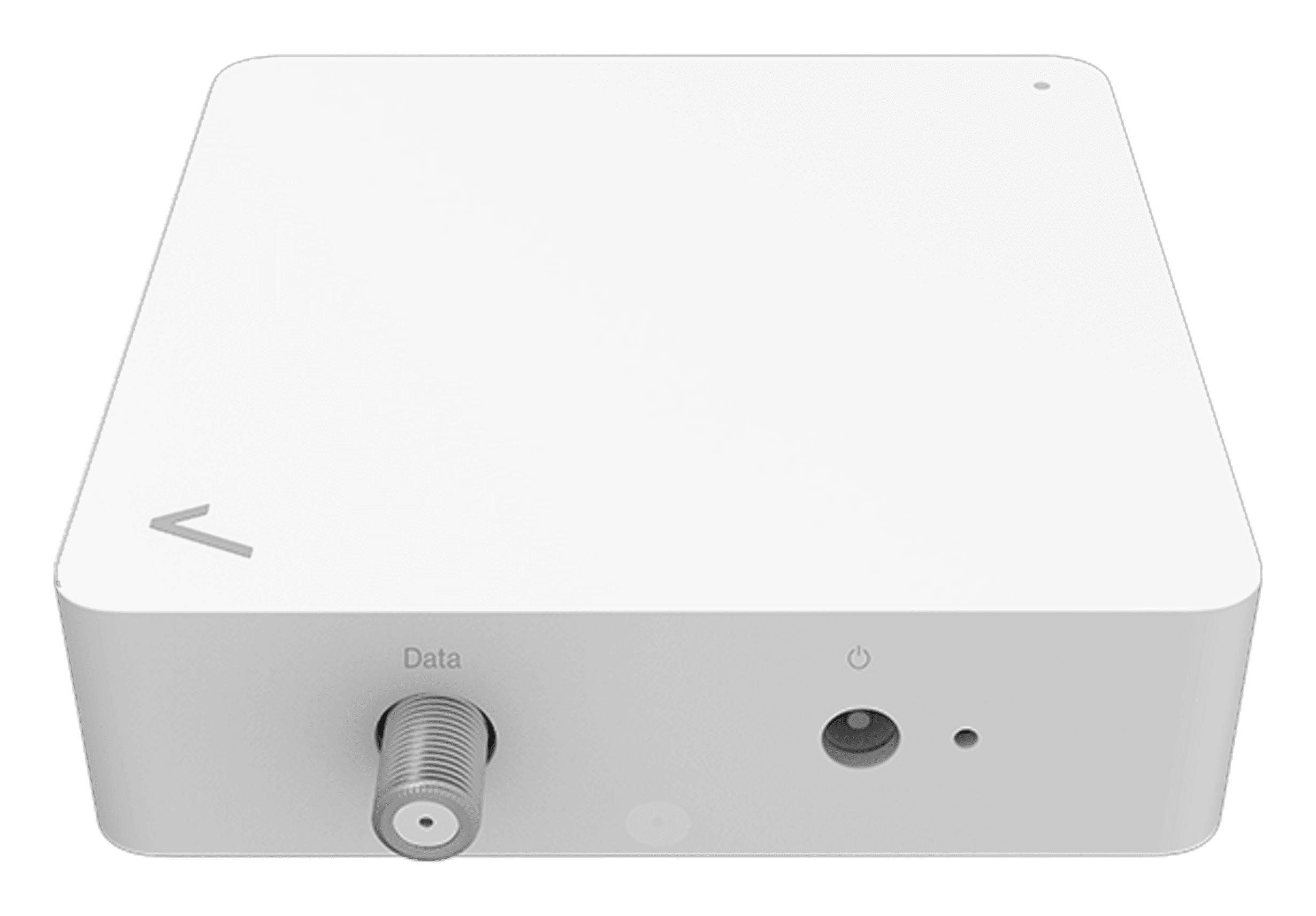

Use the wiring already in the room
02 / 04Existing coax
The adapter carries network traffic over a compatible coax path, which can avoid opening finished walls just to reach a distant office or back room.
Keep the path wired
03 / 04MoCA 2.5
MoCA 2.5 provides the coax-network standard and remains backward compatible with MoCA 2.0, 1.1 and 1.0 devices, subject to the limits of the installed coax network.
MoCA Ethernet Adapter · ASK-MAE340

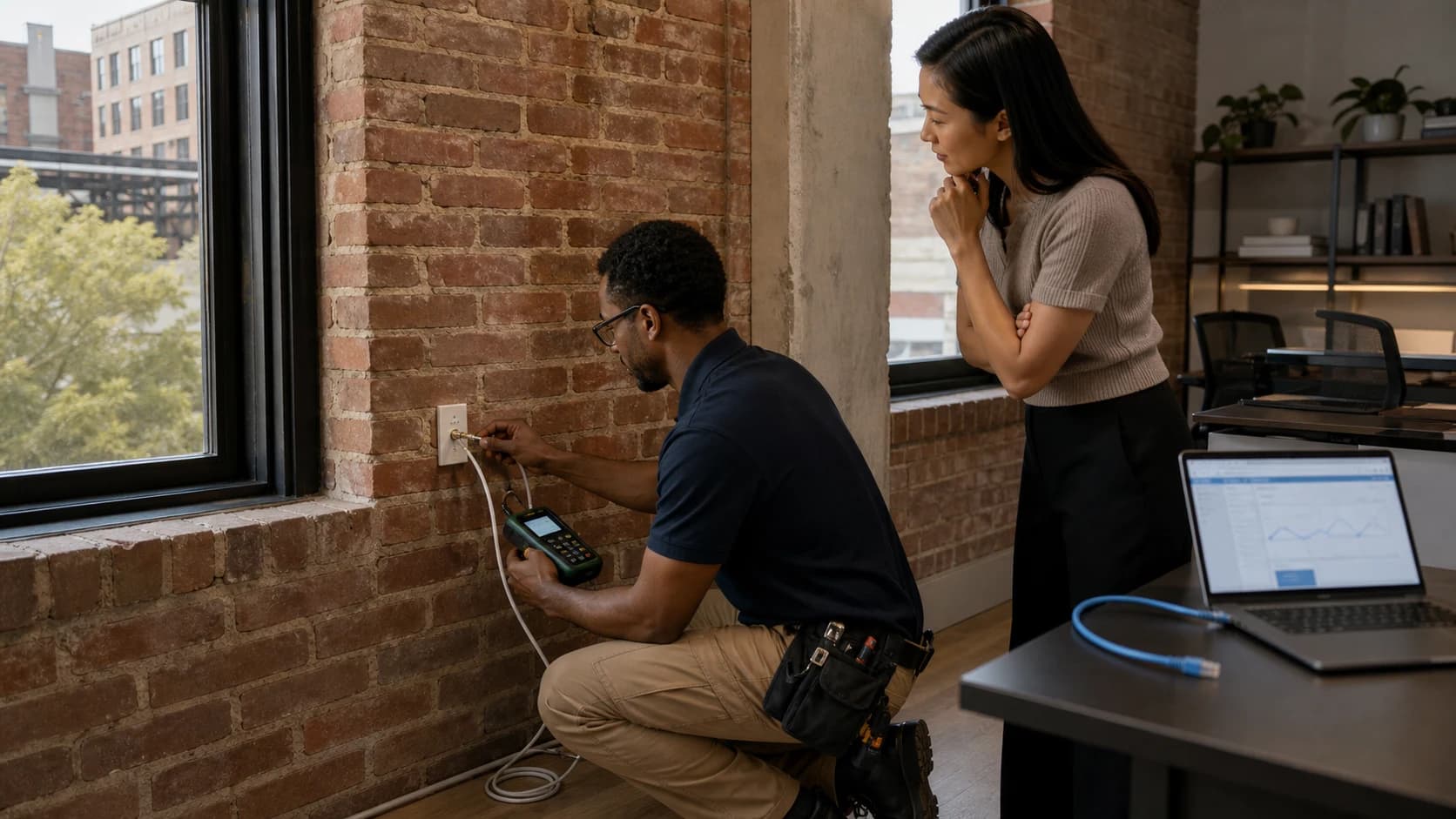

04 / 04A finished Midtown office with coax in the wall
Test the existing coax path, then place wired workstations and shared equipment in a renovated room where pulling new Ethernet would disrupt the finished space.
Business applications
Where it fits.
A finished Midtown office with coax in the wall
Test the existing coax path, then place wired workstations and shared equipment in a renovated room where pulling new Ethernet would disrupt the finished space.
Point of sale and back-office equipment
Give appropriate fixed devices a wired connection in a store or hospitality space that already has a usable coax outlet away from the primary router.
Phones, printers and a small workstation cluster
Use the four Ethernet ports for a compact group of devices after confirming power, cable condition, network compatibility and the bandwidth each device actually needs.
Specifications
Details that matter.
- Model
- ASK-MAE340
- MoCA standard
- MoCA 2.5; backward compatible with MoCA 2.0, 1.1 and 1.0
- Coax connection
- One 75-ohm F-type connector for data
- Coax frequency
- Extended D-Band, 1125–1675 MHz, Profile D
- Ethernet
- One 2.5 Gigabit RJ-45 port and three 1 Gigabit RJ-45 ports
- MoCA network size
- Up to 16 nodes including the network coordinator
- Published link delay
- 2.5 ms typical; 3.5–5.0 ms maximum depending on the number of nodes
- Published transmit power
- 2–5 dBm typical; 7 dBm maximum
- Status indicators
- Front system-status LED and Ethernet-port link indicators
- Remote management
- TR-069 capability
- Power
- 12 V, 1 A adapter; less than 7 W published consumption; 100–240 V AC, 50/60 Hz input
- Operating temperature
- 0–40 °C
- Storage temperature
- −20–80 °C
- Dimensions
- 107 × 107 × 30.6 mm
- Certifications
- FCC, UL and MoCA 2.5
- Compatibility
- Verizon Router CR1000A/B and Fios Router G3100
